1. The Capability Ceiling of Graphite and the Silicon Opportunity
For years, graphite has worked as the foundation of lithium-ion battery anodes, providing reputable cycling stability and well-established production processes.

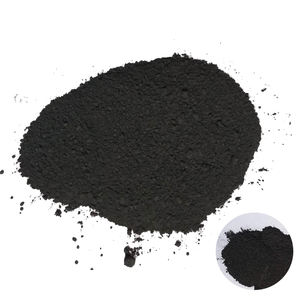

(Battery material)
Yet graphite’s theoretical certain ability of 372 mAh g ⁻¹ is quickly approaching its physical restriction, producing a basic traffic jam for next-generation power storage applications that demand ever-higher energy density.
Silicon provides a compelling choice, with a theoretical capability more than eleven times that of graphite, reaching up to 4,200 mAh g ⁻¹.
This remarkable capability enables batteries that are lighter, smaller, and capable of storing dramatically extra energy each quantity or weight.
The market feedback has been swift and substantial, with worldwide deliveries climbing dramatically year over year and production capacity expanding at an unmatched speed.
Industry experts continually highlight silicon anode products as one of the fastest-growing segments in the battery supply chain, driven by pressing need from electric vehicles, consumer electronic devices, and emerging high-power applications.
This quick growth signals that silicon anode technology has emphatically crossed the limit from lab research to industrial-scale commercialization.
2. The Commercialization Inflection Factor
The shift from graphite to silicon-based anodes is no longer a distant assurance yet an unfolding reality.

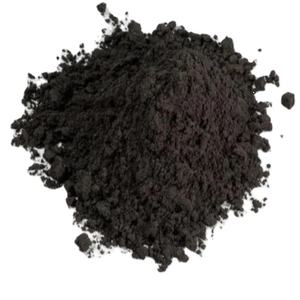

(Graphite)
In early 2026, a leading battery supplier introduced its newest generation of high-energy-density cells, accomplishing cell-level energy thickness well over 350 Wh/kg through low-expansion silicon-carbon anodes– a landmark that industry viewers have defined as noting the beginning of large industrial adoption of silicon anodes.
Significant battery manufacturers and auto OEMs are currently proactively integrating silicon anode materials into their item roadmaps, with numerous high-volume assembly line already in operation.
Silicon-graphite composites with moderate silicon filling stand for the lowest-risk commercialization pathway for the current stage of electrical vehicle transition, while pure silicon anodes, offering also greater capacity, stay a longer-term recommendation as the industry remains to refine manufacturing processes and address resilience challenges.
The application range is also broadening swiftly beyond typical power devices and customer electronics.
Today, costs electrical vehicles, electric vertical takeoff and landing aircraft, and progressed robotics applications are emerging as significant growth markets for silicon anodes, since these fields need energy thickness degrees that graphite-based systems can no longer sustain.
Silicon-carbon products are extensively recognized as the key to crossing this efficiency barrier and making it possible for the next generation of lightweight, long-range power storage.
3. The Technical Challenges That Held Silicon Back
Despite its remarkable ability benefits, silicon has actually faced three interconnected technological barriers that have actually traditionally postponed its widespread commercialization.

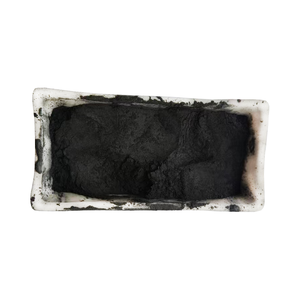

(Silicon Anode Materials)
The initial and most essential difficulty is severe quantity development.
Silicon undergoes volumetric expansion of several hundred percent during lithiation, generating mechanical stress and anxiety that brings about bit fracture, electrode architectural collapse, and loss of electrical contact with existing collectors.
The second difficulty concerns the strong electrolyte interphase, a passivation layer that bases on the anode surface during the very first cost cycle.
In silicon anodes, the serious quantity growth triggers this layer to repeatedly split and reform with each cycle, consuming lithium supply and degrading cycle life via permanent lithium loss and fast ability decay.
The third difficulty is reduced inherent electric conductivity, as silicon’s semiconductor homes restrict electron transportation within the electrode, demanding the consolidation of conductive additives to keep ample price capacity.
These difficulties are adjoined: quantity expansion aggravates SEI instability, and poor conductivity substances the performance destruction from both.
Overcoming this set of three of obstacles has actually called for sustained technology throughout numerous fronts– from nanostructural style to composite architectures to electrolyte chemistry– and has actually driven the growth of the business options we see today.
4.Silicon-Carbon Composites: The Leading Commercial Solution
Silicon-carbon composites have become the leading industrial method to utilizing silicon’s ability while alleviating its drawbacks.

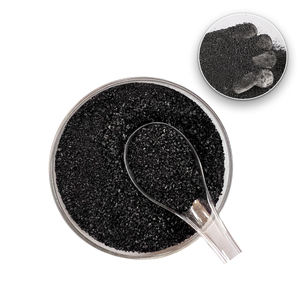

(Anode Materials)
The carbon part serves numerous crucial features: it provides a conductive matrix that makes up for silicon’s bad electric conductivity, produces barrier room to suit quantity adjustments, and reinforces interfacial interactions in between silicon particles and the surrounding electrode framework.
The commercial energy behind silicon-carbon anode materials is indisputable, with manufacturing volumes growing continuously and brand-new manufacturing facilities coming online around the world.
A number of distinctive production strategies exist for silicon-carbon compounds, each with its very own benefits.
CVD-based silicon-carbon products include transferring silicon onto carbon substratums via chemical vapor deposition, enabling accurate control over silicon material and distribution, and technological development in this room is focusing on enhancing silicon loading, enhancing carbon layer style, and boosting initial coulombic efficiency and cycle stability.
Nano-porous silicon-carbon composites offer another path, where the porous framework gives internal gap room that suits silicon growth internal as opposed to outside, decreasing tension on the total electrode style.
Business are additionally exploring pre-lithiated silicon-carbon products, which compensate for preliminary lithium usage throughout SEI formation, boosting first-cycle effectiveness and general energy thickness.
The diversity of these methods mirrors the market’s acknowledgment that no single option fits all applications– different silicon loadings, particle dimensions, and composite styles match various efficiency requirements and price targets, and ongoing research continues to improve each of these courses.
5. The Essential Function of Advanced Binders in Silicon Anode Efficiency
The binder system in a silicon anode is much more than a glue– it is an active part that basically determines electrode stability and biking security.

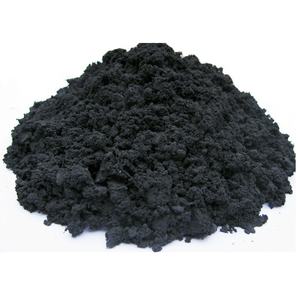

( Battery material)
Traditional graphite anodes rely upon a common binder system incorporating styrene-butadiene rubber with carboxymethyl cellulose, but also for silicon-containing anodes, this system usually shows insufficient in withstanding the repeated anxiety from quantity changes.
The binder has to suit enormous mechanical stress, keep attachment in between silicon fragments and the current enthusiast with thousands of expansion-contraction cycles, and add to maintaining the electric network within the electrode.
Polyacrylic acid has emerged as a remarkable binder for silicon anodes due to its flexibility and strong adhesion buildings, with various studies demonstrating that electrodes utilizing PAA plus SBR binders regularly deliver the very best efficiency, accomplishing high preliminary coulombic efficiency, high reversible ability, and steady ability retention over extended cycling.
Past PAA, scientists are investigating ternary composite binders that integrate several polymer components to achieve collaborating results, and some have reported ternary composite binders created especially for silicon-carbon blend anodes.
The binder market is reacting to these progressing requirements, with CMC/SBR systems maximized for silicon blends currently leading the market because of their ability to create steady, high-capacity composites, while water-based binders consisting of SBR, CMC, and PAA are significantly applied to next-generation silicon-based electrodes, showing the industry’s press toward more lasting manufacturing processes.
Binder engineering has actually also become an essential strategy for reducing the coulombic effectiveness trough– the characteristic dip in effectiveness caused by silicon quantity expansion, duplicated SEI revival, and relentless lithium loss– as sophisticated binder layouts protect architectural stability and promote steady SEI development, directly attending to the root causes of capability discolor.
6. Conductive Ingredients: Constructing the Electric Highway
Silicon’s low innate electrical conductivity suggests that conductive additives are not optional– they are essential for achieving functional price capability and cycle life.
(Silicon Anode Materials)
Conventional carbon black has actually long acted as the standard conductive additive in battery electrodes, but the demands of silicon anodes have pushed the industry toward more advanced carbon architectures.
Carbon nanotubes and graphene have actually emerged as key conductive ingredients driving technical improvement in this area, exhibiting premium electric conductivity, outstanding mechanical flexibility, and special dimensional benefits contrasted to standard carbon black.
CNTs supply one-dimensional conductive paths that connect in between silicon particles, while graphene supplies two-dimensional conductive sheets that can wrap around and interconnect bits, and three-dimensional carbon skeletal systems making up both carbon nanotubes and graphene sheets serve as a conductive matrix while also supplying buffer room to accommodate volume adjustments throughout cost and discharge.
The double carbon network method has actually revealed specific guarantee, with research study showing that silicon nanoparticles effectively enveloped in reduced graphene oxide and carbon nanotube interlaced networks– with high area, large pore quantity, and abundant permeable structure– accomplish enhanced lithium storage space kinetics.
Advanced conductive ingredients likewise contribute to SEI stability, as fluoride-doped carbon conductive additives make it possible for the construction of LiF-rich SEI layers on silicon anodes, minimizing overall anode quantity growth and enhancing cycling security without generating hazardous side reactions.
The expanding demand for high-performance conductive ingredients is mirrored in the rapid growth of manufacturing capability for specialized carbon products, particularly permeable carbons created specifically for CVD silicon-carbon anodes, which are seeing amazing development prices as suppliers look for to enhance their silicon anode solutions.
The selection of conductive additives must be customized to the specific silicon bit size, morphology, and composite design employed in each application– for silicon nanoparticles below a specific threshold, carbon nanotube networks can offer efficient electron transportation without extreme additive loading, while for bigger silicon bits or greater silicon content anodes, crossbreed conductive networks combining several carbon architectures might be required to preserve performance.
7. The Evolving Supply Chain and Manufacturing Landscape
As silicon anode commercialization speeds up, the supply chain is going through rapid transformation to fulfill growing need.
(Anode Materials)
International essential battery silicon anode material producers consist of established chemical companies and specialized material vendors, with the leading gamers collectively holding a substantial share of the marketplace, while new entrants continue to emerge with cutting-edge production innovations.
Manufacturing capability is being developed throughout several areas, with several major centers having started commercial-scale procedures in current months, and additional capacity developments are proactively underway.
For instance, one leading supplier has actually begun EV-scale manufacturing of its sophisticated silicon-carbon material at a new manufacturing facility made for substantial yearly outcome, equal to a significant battery ability, and this product has actually shown compatibility with multiple cathode chemistries, enabling both high power thickness and ultra-fast charging abilities.
Other firms have actually revealed supply arrangements for silicon-carbon composites designed as drop-in replacements for graphite in existing lithium-ion cell manufacturing processes, while joint endeavors between material experts and chemical titans are advancing the industrialization of next-generation composite anode products.
Residential production capability is also increasing rapidly in different areas, with several firms reporting increasing month-to-month shipments and releasing brand-new production lines that have actually currently supplied samples to leading battery producers for efficiency testing.
The upstream resources supply chain is additionally developing, with key basic materials consisting of metallurgical silicon, silane, graphite, and porous carbon, and distributors guaranteeing steady material supply and high quality uniformity via dedicated production facilities.
Global demand for silane, particularly, is being spurred by silicon anode manufacturing growth, as silane-based courses stay a main manufacturing path for lots of producers, while different manufacturing approaches– such as low-temperature reduction processes– provide the possibility for more economical and sustainable production.
Techno-economic analyses have actually shown that these ingenious routes can dramatically lower the cost and environmental impact of silicon manufacturing, making them eye-catching alternatives for the next wave of ability development.
As the whole ecosystem– from basic materials to complete anode powders– continues to mature, the silicon anode market is positioned for sustained growth, with manufacturers and suppliers working carefully to address technological obstacles, scale manufacturing, and bring high-performance, cost-competitive options to the international battery market.
At Nanotrun, we are devoted to advancing silicon anode modern technology through our comprehensive portfolio of high-performance materials, including high-purity silicon-based powders, custom-formulated silicon-carbon compounds, and advanced conductive additive remedies crafted to meet the requiring requirements of next-generation lithium-ion batteries.
( Battery material)
We understand that the shift to silicon anodes is not a simple product replacement but a system-level makeover that needs careful optimization of every element, and our team works carefully with consumers to create customized services that resolve their certain efficiency targets, producing restrictions, and expense goals.
As the silicon anode market continues its quick growth, Nanotrun stands all set to support battery producers, cell manufacturers, and OEMs in making the transition from graphite to silicon-enhanced electrodes, and we welcome you to discover how our sophisticated product options can help you attain higher energy density, longer cycle life, and superior battery performance.
Contact us today to review your silicon anode product requirements and uncover the Nanotrun difference.
